Spare Parts List

CANOPY SHELL

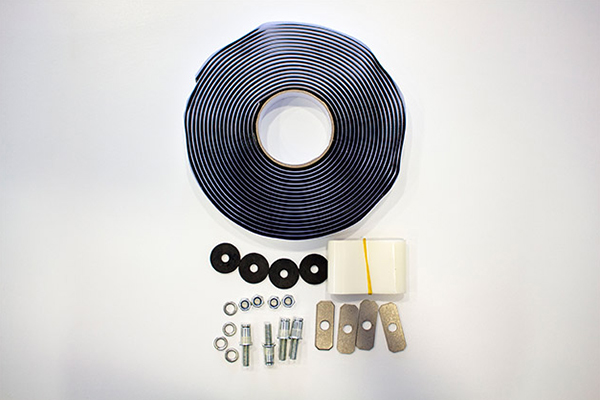

CANOPY FITTING KIT

Code: C4-00-FITKIT-01B

1 x Kit required per canopy. Kit includes Tailgate tape, rivnuts, bolts, washers, and instructions.

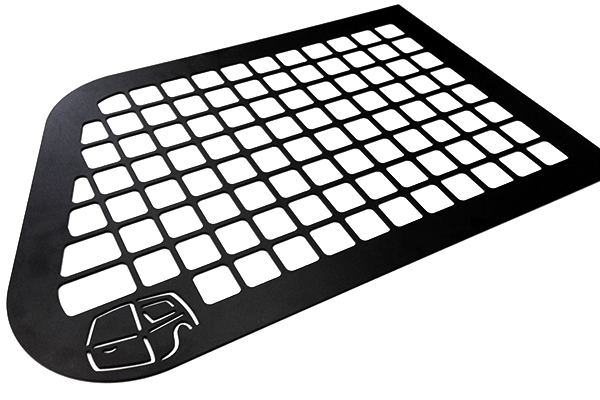

SLIDING WINDOW SECURITY / DOG MESH

Code: C3-41-MESH-01A

Laser Cut powder coated steel Window Mesh to fit double Cab sliding windows

CANOPY BRAKE LIGHT – GLASS MOUNTED

Code: C5-54-BLIGHT-H

Fits 98-06+ 06-09 Double Cab Triton, 09-15 Extra Cab Triton, 99-05 Double and Extra Cab Hilux, 98-02+ 02-09 Navara Double Cab, 08-12 Colorado Extra Cab, 03-08 Rodeo Extra Cab.

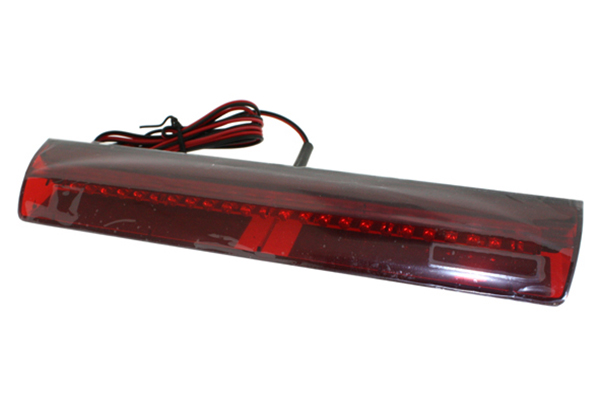

CANOPY BRAKE LIGHT – RECESSED

Code: C5-54-BLIGHT-R

Canopy recess mounted brake light.

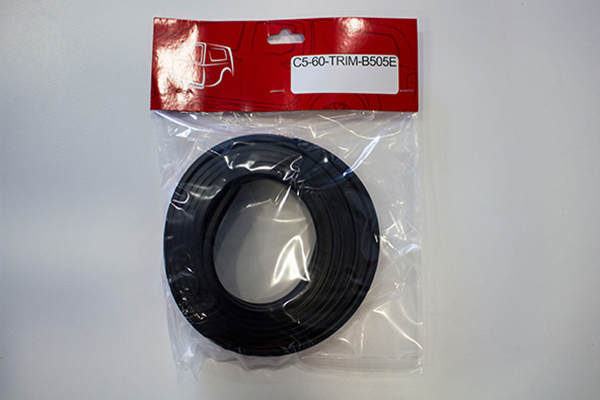

CANOPY EDGE TRIM

Code: C5-60-TRIM-B505E

Canopy Edge Trim (per canopy) 5.05m Roll.

REPLACEMENT CANOPY DOOR KEY

Code: C7-01KEY

Specify Key Code required when ordering – PRM10 / PRM11 / PRM12 / PRM13 / PRM14 / PRM15 / PRM16 / PRM17 / PRM18 / PRM19 / PRM20 (Key code is stamped into the barrel of the handles).

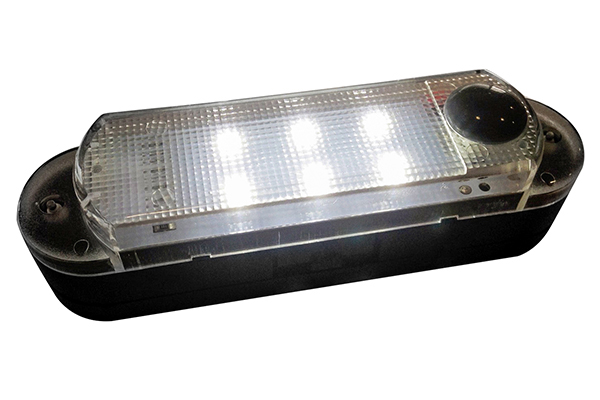

LED INTERIOR CANOPY LIGHT

Code: 5-54-ATLED6VB

LED Interior Canopy Light (requires 4 x AAA batteries) incl x 2 mounting screws.

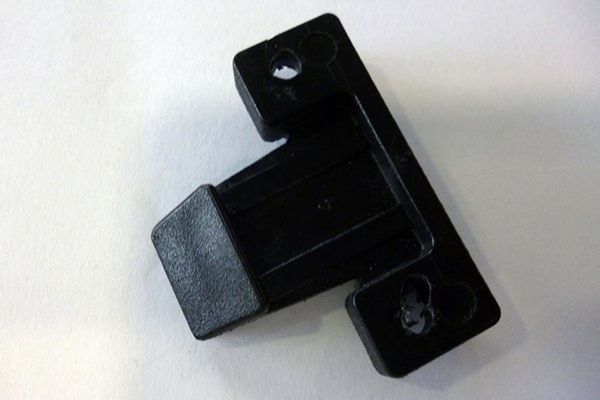

PLASTIC CATCH FOR SLIDING WINDOW

Code: C5-54-CATCH-20

Side Sliding window replacement plastic catch (x 1 required per window).

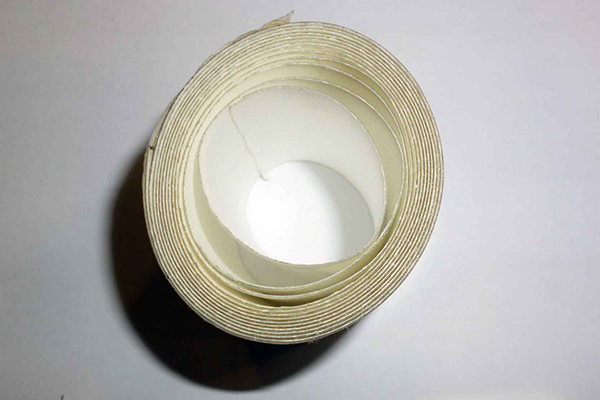

TAILGATE PROTECTION TAPE

Code: C4-01-TAPE-CLEAR

Clear rear Tailgate tape – 1.5m – x 1 required per canopy.

SIDE WINDOW INTERNAL GARNISH CLIP

Code: C5-54-3144

Garnish clip for internal frame of side window.

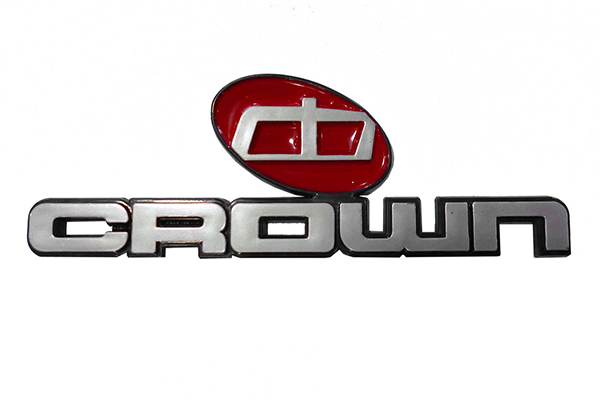

CROWN CANOPY SIDE BADGE

Code: YC-15-DECAL-C1

x 2 required per canopy.

CROWN CANOPY REAR DOOR BADGE

Code: YC-15-DECAL-C4

x 1 required per canopy.

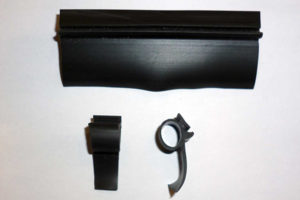

REAR DOOR RUBBER SEAL

Code: C5-55-3125

Rubber seal which inserts along base rail of rear door frame – 1.8m

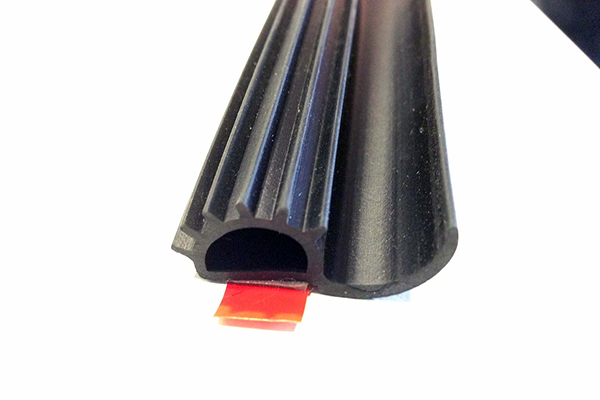

REAR DOOR TAILGATE MOULDING RUBBER SEAL

Code: C5-55-9001

Rubber seal which inserts along base of Rear door Tailgate Moulding 1.6m

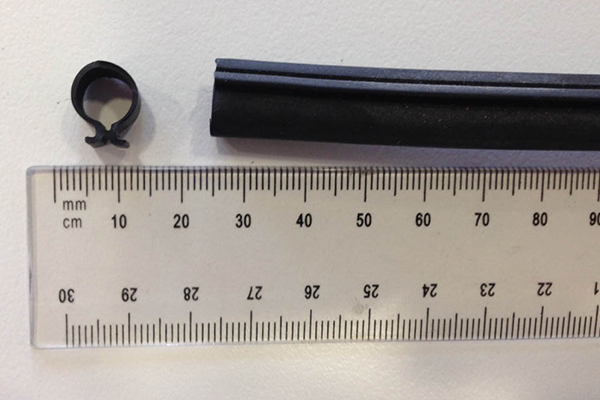

REAR DOOR RUBBER POPE SEAL

Code: C5-55-3296

Rubber pope seal for rear doors. Sold in quantity large enough to fit a rear door of 7ft.

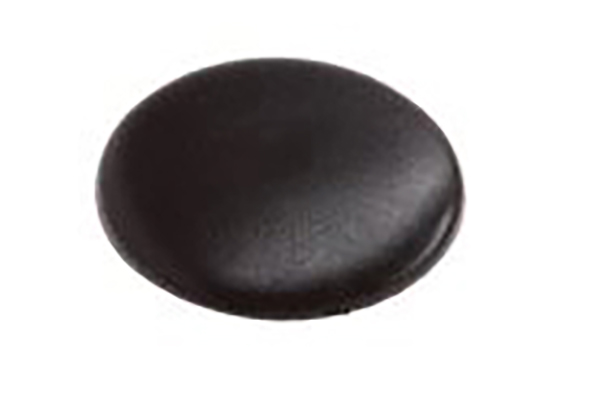

RIVET COVER CAPS – BLACK

Code: C5-56-0652710

Cover Caps for rear door rivets – Black

FRONT AND SIDE WINDOWS

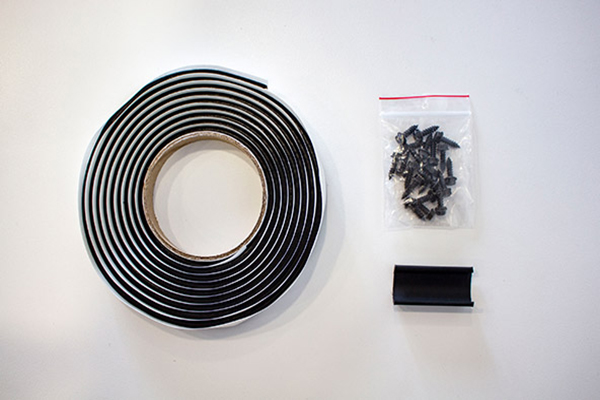

FIT KIT TO INSTALL SIDE OR FRONT WINDOW IN CANOPY

Code: C5-52-PREPSTD

Canopy Side/Front window fitting Kit.
Order x 1 for each replacement window.
Kit includes Window sealing bead, 20 x Window screws, Window trim garnish clip.

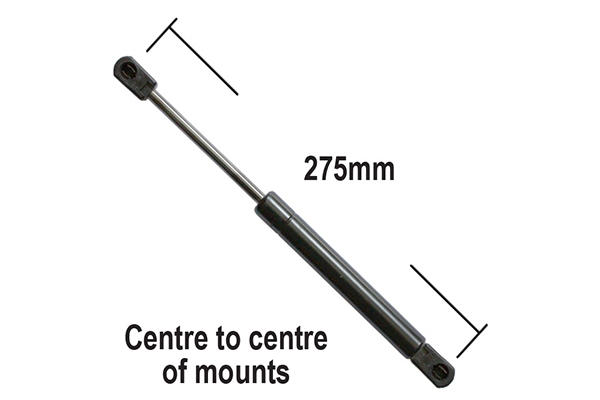

SIDE WINDOW GAS STRUT

Code: C6-S-02

Gas Stay – Side Window
Extended Length: 275mm
Body Length: 165mm

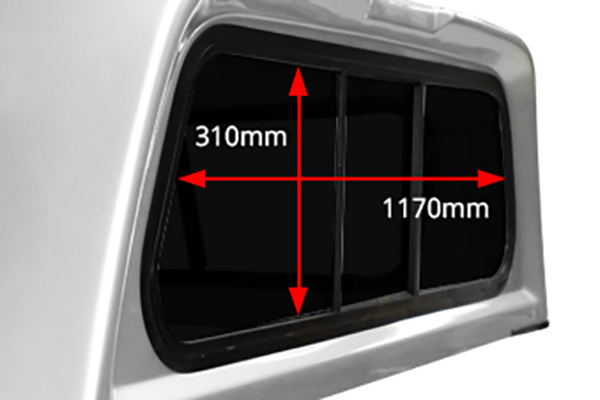

CANOPY FRONT SLIDING WINDOW

Code: C5-10-39594

Replacement Canopy front sliding window – Complete front window assembly includes inner and outer frame & glass.
1 x C5-52-PREPSTD required to install.

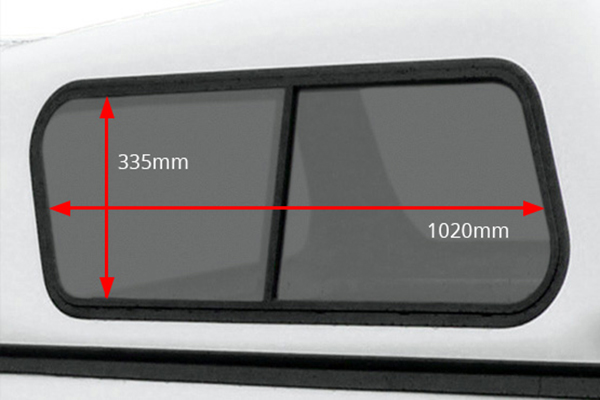

LEFT HAND SIDE DOUBLE CAB SLIDING WINDOW

Code: C5-21-39626L

Replacement Left Hand Side D/Cab Sliding Window Complete side window assembly includes inner and outer frame & glass.
1 x C5-52-PREPSTD required to install.

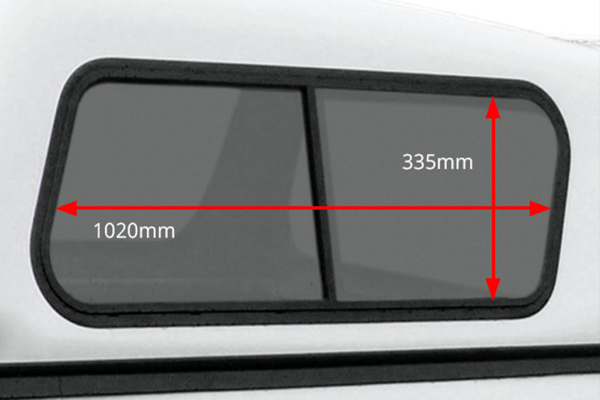

RIGHT HAND SIDE DOUBLE CAB SLIDING WINDOW

Code: C5-21-39626R

Replacement Right Hand Side D/Cab Sliding Window Complete side window assembly includes inner and outer frame & glass.
1 x C5-52-PREPSTD required to install.

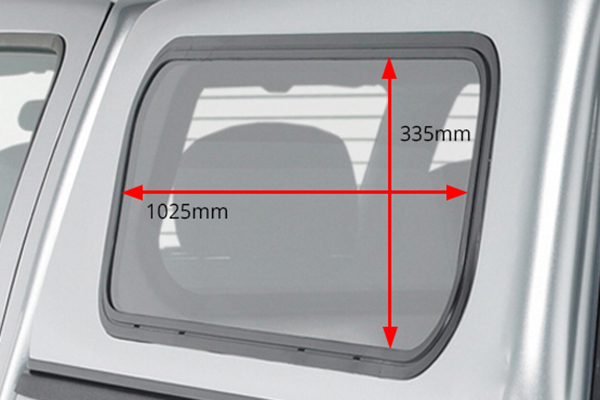

LEFT HAND SIDE DOUBLE CAB FIXED PANEL WINDOW

Code: C5-21-39692L

Replacement Right Hand Side D/Cab Sliding Window Complete side window assembly includes inner and outer frame & glass.
1 x C5-52-PREPSTD required to install.

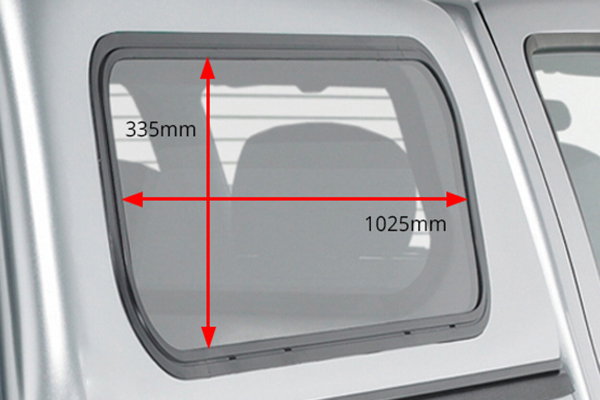

RIGHT HAND SIDE DOUBLE CAB FIXED PANEL WINDOW

Code: C5-21-39692R

Replacement Right Hand Side D/Cab Sliding Window Complete side window assembly includes inner and outer frame & glass.
1 x C5-52-PREPSTD required to install.

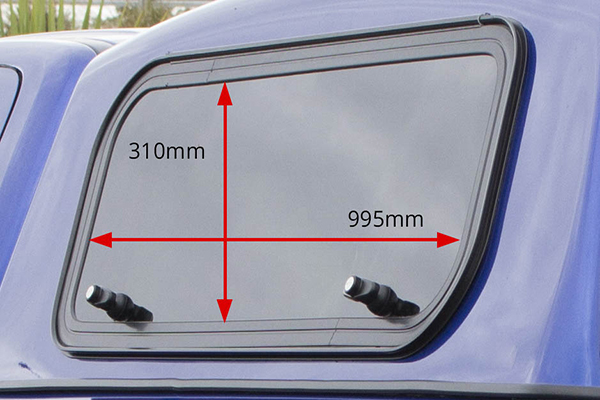

LEFT HAND SIDE DOUBLE CAB LIFT UP WINDOW

Code: C5-21-63059L

Replacement Left Hand Side D/Cab Lift Up Window Complete side window assembly includes inner and outer frame, glass,handles and struts.
1 x C5-52-PREPSTD required to install.

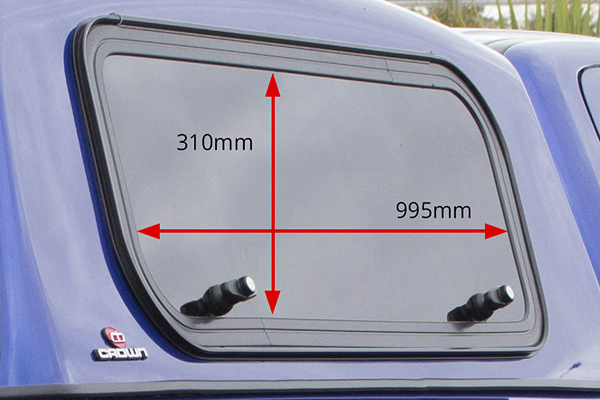

RIGHT HAND SIDE DOUBLE CAB LIFT UP WINDOW

Code: C5-21-63059R

Replacement Right Hand Side D/Cab Lift Up Window Complete side window assembly includes inner and outer frame, glass, handles and struts.
1 x C5-52-PREPSTD required to install.

LEFT HAND SIDE DOUBLE CAB FLUSH MOUNT LIFT UP WINDOW

Code: C5-21-63108L

Replacement Left Hand Side D/Cab Flush Mount Lift Up Window Complete side window assembly includes inner and outer frame, glass, handles and struts.
1 x C5-52-PREPSTD required to install.

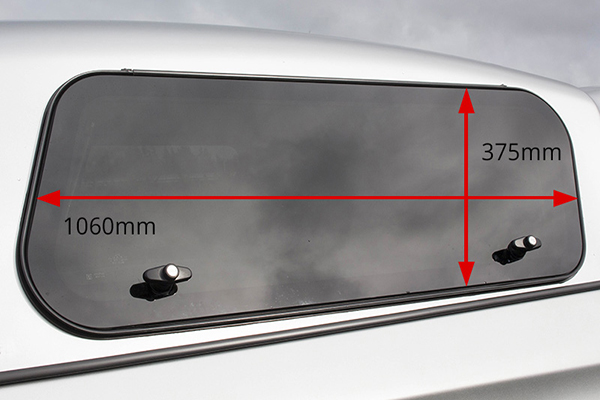

RIGHT HAND SIDE DOUBLE CAB FLUSH MOUNT LIFT UP WINDOW

Code: C5-21-63108R

Replacement Right Hand Side D/Cab Flush Mount Lift Up Window Complete side window assembly includes inner and outer frame, glass, handles and struts.
1 x C5-52-PREPSTD required to install.

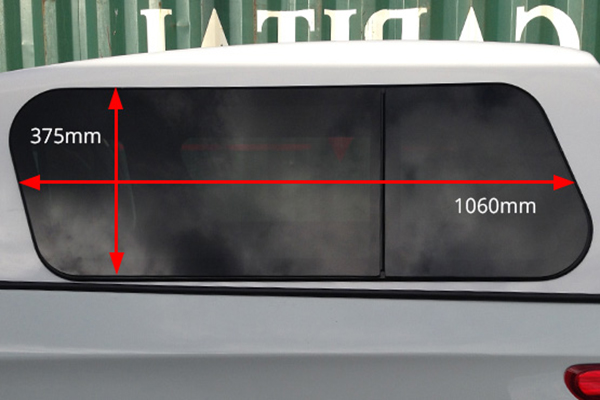

LEFT HAND SIDE DOUBLE CAB FLUSH MOUNT SCISSOR WINDOW

Code: C5-21-80011L

Replacement Left Hand Side D/Cab Flush Mount Scissor Window Complete side window assembly includes inner and outer frame & glass.
1 x C5-52-PREPSTD required to install.

RIGHT HAND SIDE DOUBLE CAB FLUSH MOUNT SCISSOR WINDOW

Code: C5-21-80011R

Replacement Right Hand Side D/Cab Flush Mount Scissor Window Complete side window assembly includes inner and outer frame & glass.
1 x C5-52-PREPSTD required to install.

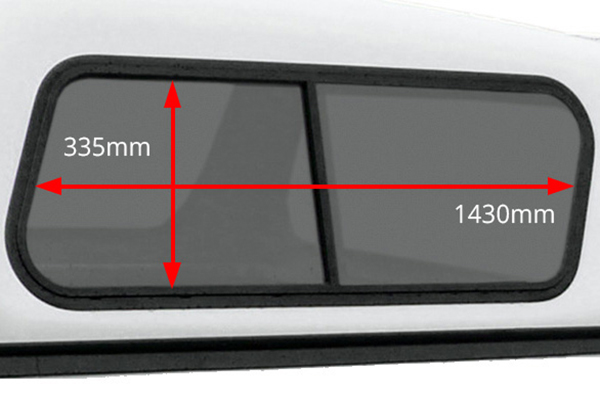

LEFT HAND SIDE EXTRA CAB SLIDING

Code: C5-22-39627L

Replacement Left Hand Side X/Cab Sliding Window Complete side window assembly includes inner and outer frame & glass.
1 x C5-52-PREPSTD required to install.

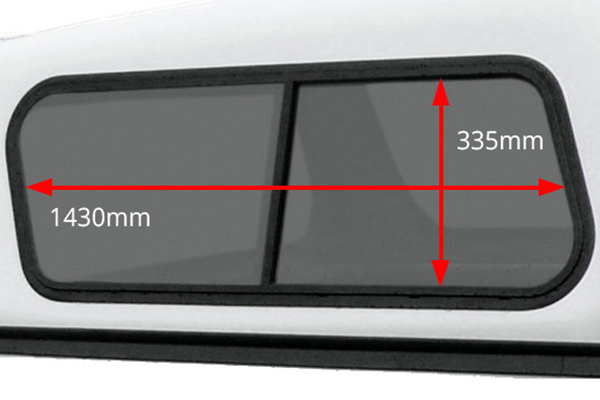

RIGHT HAND SIDE EXTRA CAB SLIDING

Code: C5-22-39627R

Replacement Right Hand Side X/Cab Sliding Window Complete side window assembly includes inner and outer frame & glass.
1 x C5-52-PREPSTD required to install.

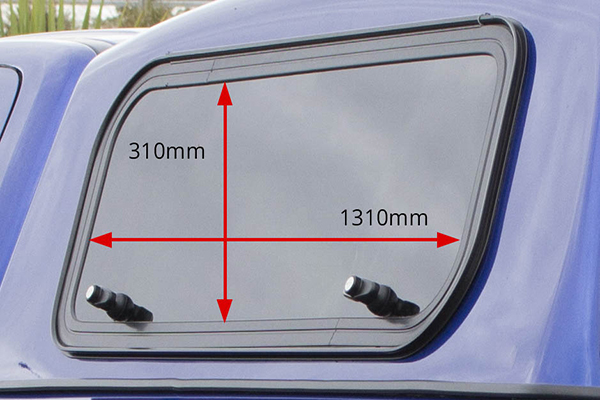

LEFT HAND SIDE EXTRA CAB LIFT UP WINDOW

Code: C5-22-63060L

Replacement Left Hand Side X/Cab Lift Up Window Complete side window assembly includes inner and outer frame, glass, handles and struts.
1 x C5-52-PREPSTD required to install.

RIGHT HAND SIDE EXTRA CAB LIFT UP WINDOW

Code: C5-22-63060R

Replacement Left Hand Side X/Cab Lift Up Window Complete side window assembly includes inner and outer frame, glass, handles and struts.
1 x C5-52-PREPSTD required to install.

WINDOW AND DOOR HANDLES

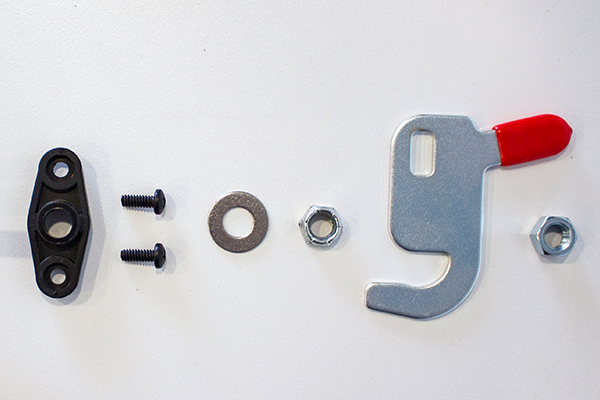

REAR DOOR HANDLE FITTING KIT – PRE FEB 2016 CANOPY

Code: C7-KIT-STD-REAR

Fitting Kit for Rear door handles (Washers, Nuts & internal adjustable latch).
For Rear doors with a C7-PRMxx handle.

REAR DOOR HANDLE – PRM C/CLOCKWISE

Code: C71-PRMXX-CCW

Replacement Right Hand Side Rear Door Handle – Key Number PRM10, PRM11, PRM12, PRM13, PRM14, PRM15 – Fixed barrel.
1 x C7-KIT-STD-REAR per handle optional if required to install.

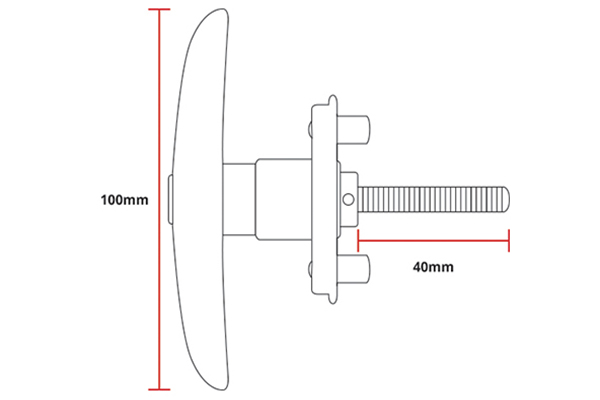

REAR DOOR HANDLE – PRM CLOCKWISE

Code: C71-PRMXX-CW

Replacement Left Hand Side Rear Door Handle – Key Number PRM10, PRM11, PRM12, PRM13, PRM14, PRM15 – Fixed barrel.
1 x C7-KIT-STD-REAR per handle optional if required to install.

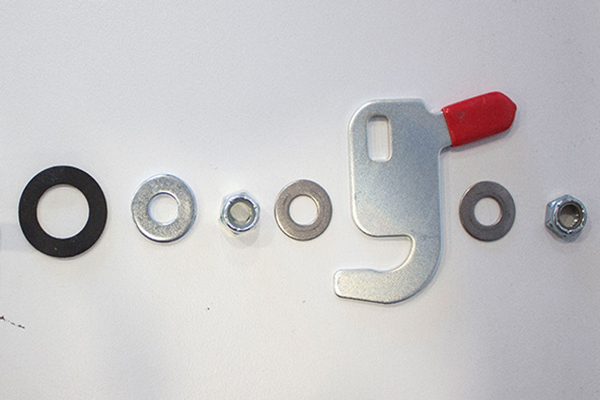

REAR DOOR HANDLE FITTING KIT – POST FEB 2016 CANOPY

Code: C7-KIT-T308-REAR

Fitting Kit for Rear door handles (Washers, Nuts & internal adjustable latch).
For Rear doors with a C7-RPRMxx handle.

REAR DOOR HANDLE – RPRM C/CLOCKWISE

Code: C71-RPRMXX-CCW

Replacement Right Hand Side Rear Door Handle – Key Number PRM10, PRM11, PRM12, PRM13, PRM14, PRM15 – Removable barrel – Counter Clockwise (Closed to Open).
1 x C7-KIT-T308-REAR per handle per handle optional if required to install.

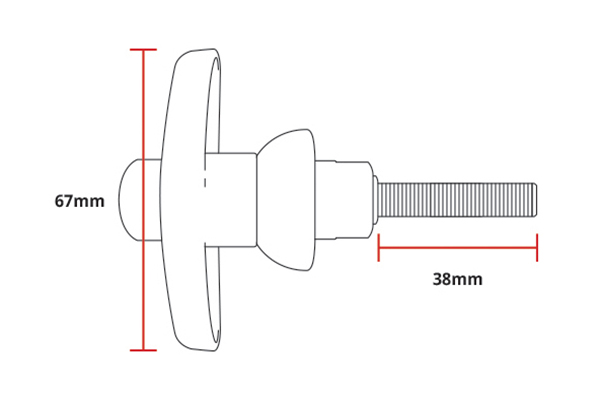

REAR DOOR HANDLE – RPRM CLOCKWISE

Code: C71-RPRMXX-CW

Replacement Left Hand Side Rear Door Handle – Key Number PRM10, PRM11, PRM12, PRM13, PRM14, PRM15 – Removable barrel – Clockwise (Closed to Open).
1 x C7-KIT-T308-REAR per handle per handle optional if required to install.

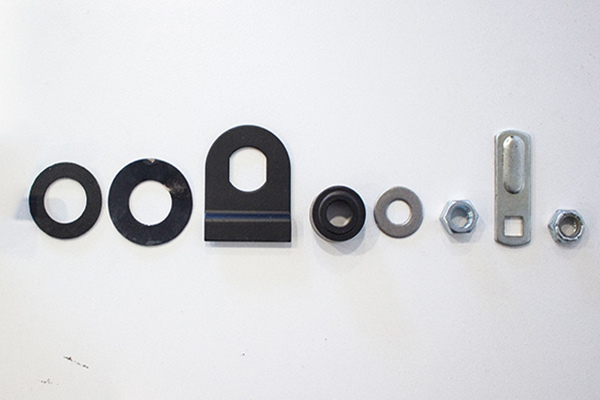

SIDE WINDOW HANDLE FITTING KIT

Code: C7-KIT-T308-SIDE

Fitting Kit for Side Window handles – includes washers, nuts, die cast collar, side window latch and anti cam bracket.

SIDE WINDOW HANDLE – PRM C/CLOCKWISE

Code: C7-SPRMXX-CCW

Replacement Side Window Handle – Key Number PRM10, PRM11, PRM12, PRM13, PRM14, PRM15 – Removable barrel – Counter Clockwise (Closed to Open).
1 x C7-KIT-T308-SIDE per handle optional if required to install.

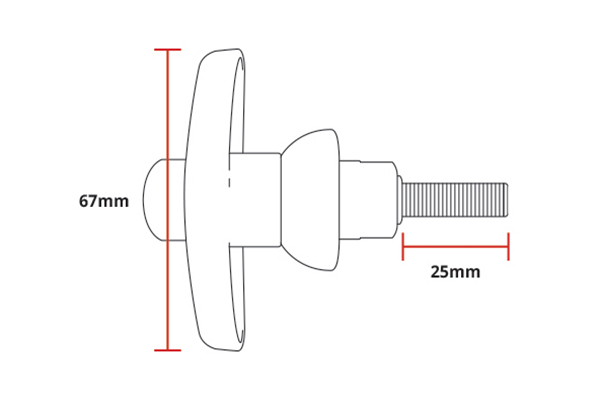

SIDE WINDOW HANDLE – PRM CLOCKWISE

Code: C7-SPRMXX-CW

Replacement Side Window Handle – Key Number PRM10, PRM11, PRM12, PRM13, PRM14, PRM15 – Removable barrel – Clockwise (Closed to Open).
1 x C7-KIT-T308-SIDE per handle optional if required to install.

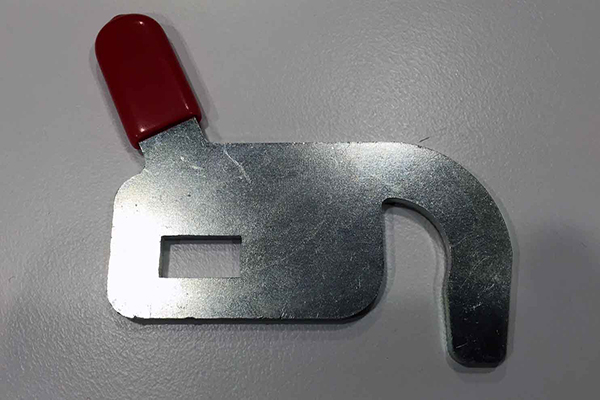

REAR DOOR ADJUSTABLE LATCH

Code: C7A-LATCH-SRD5

Internal Rear Door handle adjustable latch.
If you need all components to fit to handle order 1 x C7-KIT-T308-REAR per handle.

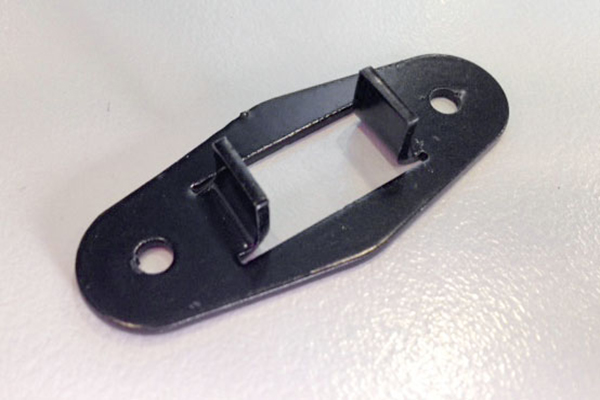

HANDLE LOCK WASHER

Code: C7A-LKW308

Handle Lock Washer to prevent door handle spinning.

REAR DOOR

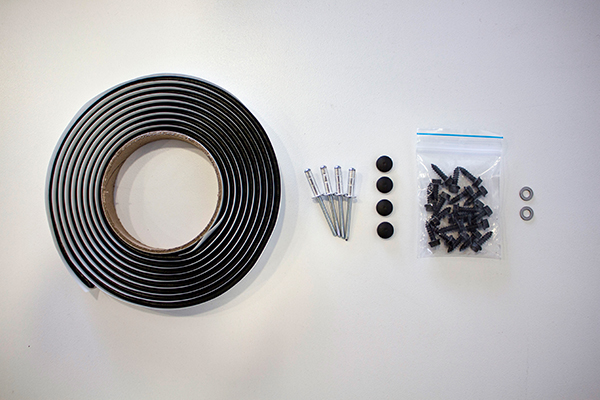

FIT KIT TO INSTALL REAR DOOR

Code: C5-52-PREPREAR

Canopy Rear door fitting Kit.
Order x 1 for each replacement window.
Kit includes Window sealing bead, 4 x Multi-grip rivet, 4 x Black cover cap for rivets, 20 x Window screws, 2 x Washers.

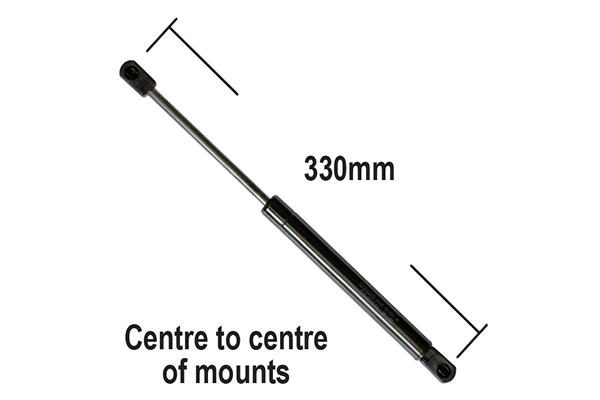

REAR DOOR GAS STRUT

Code: C6-S-04

Gas Stay – Rear Door
Extended Length 330mm
Body Length 195mm

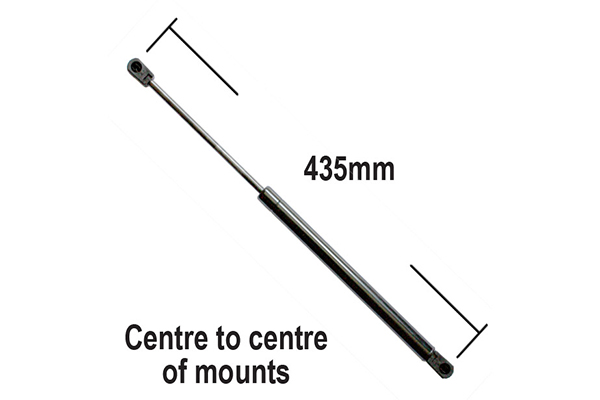

REAR DOOR GAS STRUT

Code: C6-S-06

Gas Stay – Rear Door
Extended Length 435mm
Body Length 265mm.

CANOPY REAR DOOR – 1255 x 415mm

Code: C5-31-18319.2

To fit V200/V240 10+, Rodeo 08-12, Colorado 08-12, D-Max 10-12, Triton MK 98-06, Hilux SR5 05-15.
Includes inner and outer frame, glass, handles and struts and rear door seal.
1 x C5-52-PREPREAR required to install.

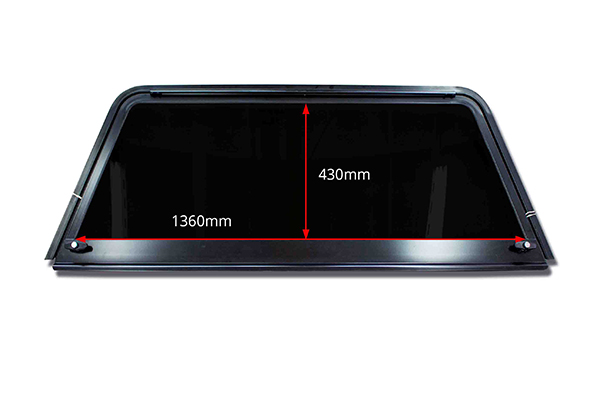

CANOPY REAR DOOR – 1360 x 430mm

Code: C5-31-18499.2

To fit Tunland 13+, Colorado 12+, D-Max 12-16, Triton ML 06-09, Triton MN 09-15, Navara D40 Thai QM1 06-15.
Includes inner and outer frame, glass, handles and struts and rear door seal.
1 x C5-52-PREPREAR required to install.

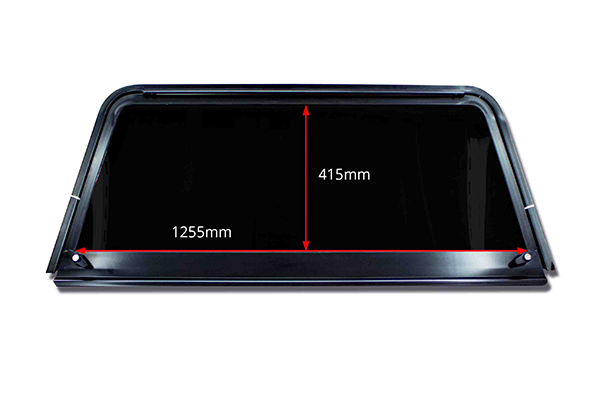

CANOPY REAR DOOR – 1255 x 415mm

Code: C5-31-18517.2

To fit Ranger 06-11, BT50 06-11, Triton MN 09-15.
Includes inner and outer frame, glass, handles and struts and rear door seal.
1 x C5-52-PREPREAR required to install.

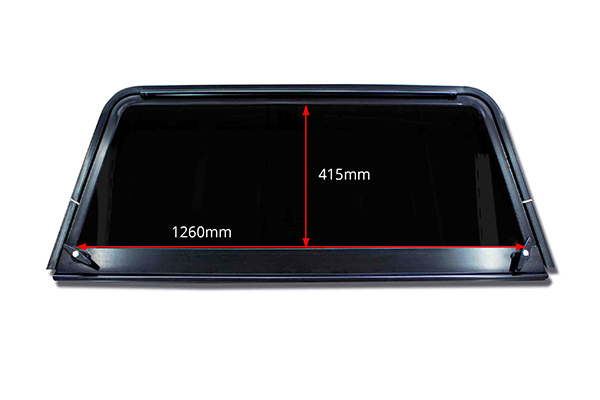

CANOPY REAR DOOR – 1260 x 415mm

Code: C5-31-18546.2

To fit Navara D22 Slab 4WD 98-14, Navara D22 Hook 2WD 09+, Hilux SR 05-15.
Includes inner and outer frame, glass, handles and struts and rear door seal.
1 x C5-52-PREPREAR required to install.

CANOPY REAR DOOR

Code: C5-32-RD006

To fit Actyon 12-18.
Fully assembled – includes inner and outer frame, glass, handles, struts, rear door skirt, seal and end caps.
1 x C5-52-PREPREAR required to install.

CANOPY REAR DOOR

Code: C5-32-RD007

To fit Triton MQ 15+.
Fully assembled – includes inner and outer frame, glass, handles, struts, rear door skirt, seal and end caps.
1 x C5-52-PREPREAR required to install.

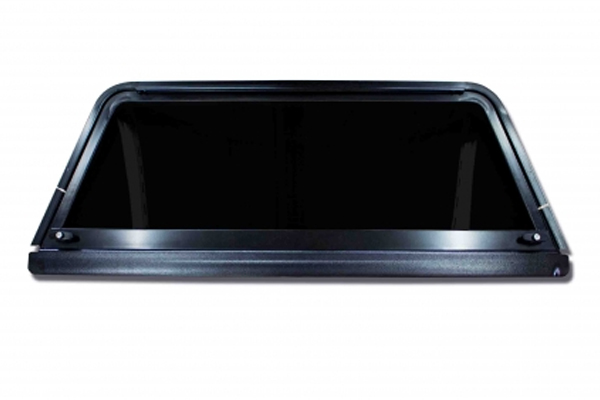

CANOPY REAR DOOR

Code: C5-32-RD008

To fit Hilux SR 15+, Navara D22 Slab 4WD 09+, Navara D22 Slab 4WD 14+.
Fully assembled – includes inner and outer frame, glass, handles, struts, rear door skirt, seal and end caps.
1 x C5-52-PREPREAR required to install.

CANOPY REAR DOOR

Code: C5-32-RD009

To fit D-Max 16+.
Fully assembled – includes inner and outer frame, glass, handles, struts, rear door skirt, seal and end caps.
1 x C5-52-PREPREAR required to install.

CANOPY REAR DOOR

Code: C5-32-RD010

To fit Ranger 12+, Amarok 10+, BT50 12+.
Fully assembled – includes inner and outer frame, glass, handles, struts, rear door skirt, seal and end caps.
1 x C5-52-PREPREAR required to install.

CANOPY REAR DOOR

Code: C5-32-RD011

To fit Hilux SR 15+.
Fully assembled – includes inner and outer frame, glass, handles, struts, rear door skirt, seal and end caps.
1 x C5-52-PREPREAR required to install.

CANOPY REAR DOOR

Code: C5-32-RD012

To fit NP300 15+
Fully assembled – includes inner and outer frame, glass, handles, struts, rear door skirt, seal and end caps.
1 x C5-52-PREPREAR required to install.

CANOPY REAR DOOR

Code: C5-32-RD013

To fit Steed 17+
Fully assembled – includes inner and outer frame, glass, handles, struts, rear door skirt, seal and end caps.
1 x C5-52-PREPREAR required to install.

CANOPY REAR DOOR

Code: C5-32-RD014

To fit T60 17+
Fully assembled – includes inner and outer frame, glass, handles, struts, rear door skirt, seal and end caps.
1 x C5-52-PREPREAR required to install.

CANOPY REAR DOOR

Code: C5-32-RD015

To fit Courier 99-06, Bounty 99-06, Hilux 99-05.
Fully assembled – includes inner and outer frame, glass, handles, struts, rear door skirt, seal and end caps.
1 x C5-52-PREPREAR required to install.

CANOPY REAR DOOR

Code: C5-32-RD021

To fit Musso 19+.
Fully assembled – includes inner and outer frame, glass, handles, struts, rear door skirt, seal and end caps.
1 x C5-52-PREPREAR required to install.

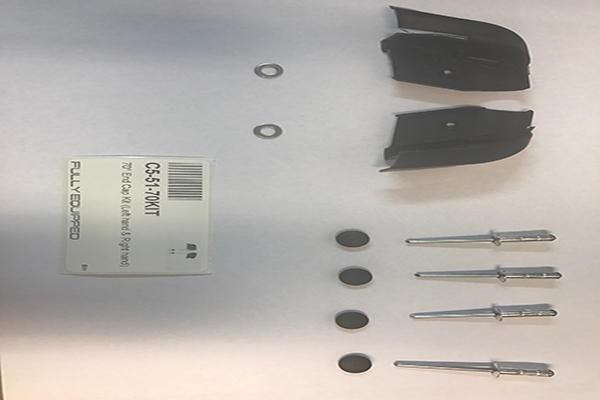

70° REAR DOOR END CAPS (PAIR)

Code: C5-51-70KIT

End Cap Kit to fit – Ranger 12+, Tunland 13+, Colorado 12+, D-Max 12-16, D-Max 16+, BT50 12+, Triton 09-15, Triton MQ 15+, Navara D22 4WD 09+, Navara D40 06-15, Navara NP300 15+, Hilux SR 15+, Hilux SR5 15+, Amarok 10+.

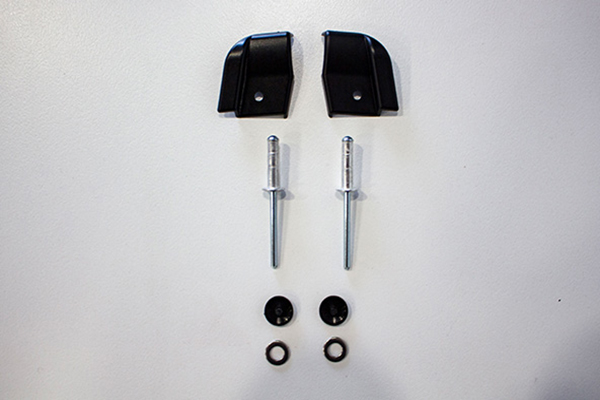

76° REAR DOOR END CAPS (PAIR)

Code: C5-51-76KIT

End Cap Kit to fit – Ranger 06-11, Rodeo 03-08, Colorado 08-12, BT50 06-11, Triton X/C 09-15, Hilux SR 05-15, Hilux SR5 05-15.
